Streaming

Presenting AI response to your user in real-time.

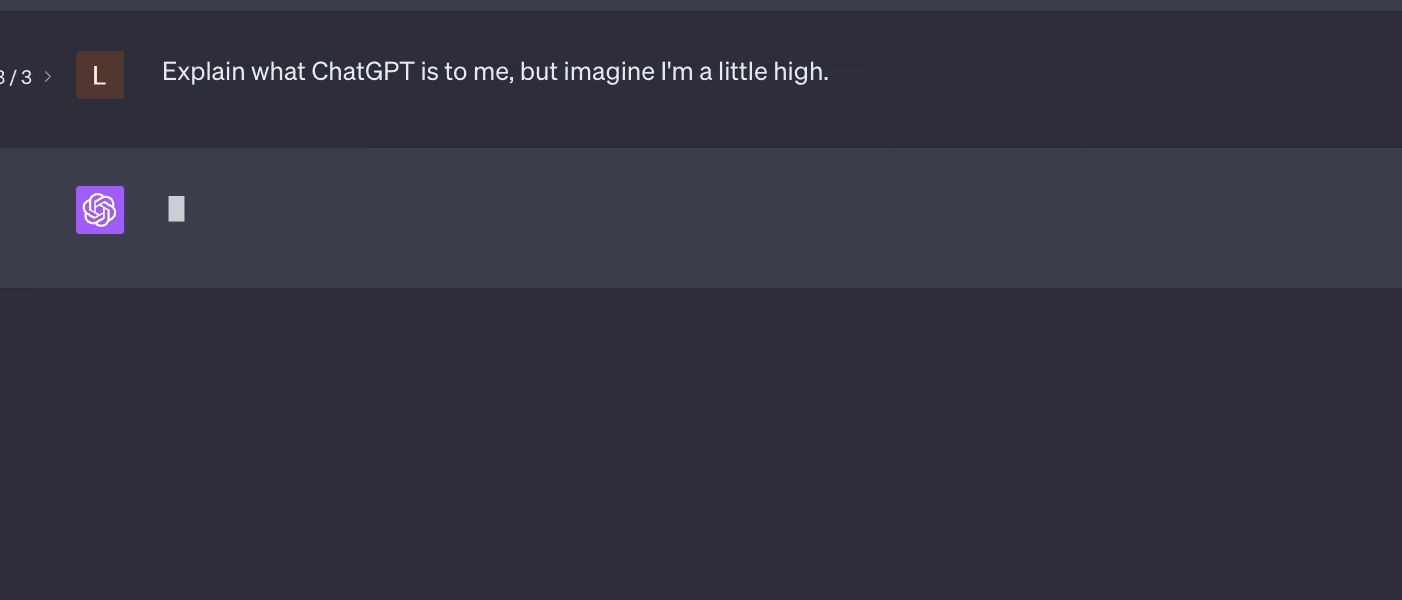

Streaming enables you to show users chunks of response text as they arrive rather than blindly waiting for the full response. You can offer a real-time Agent conversation experience.

Agent

To stream the AI response you should use the stream() method on the agent, instead of chat(). This method prepares the agent workflow to use the StreamingNode instead of ChatNode.

Calling the events() method on the returning agent handler you get a PHP generator that can be used to consume the streamiong as an iterable object.

use App\Neuron\MyAgent;
use NeuronAI\Chat\Messages\UserMessage;

$handler = MyAgent::make()->stream(new UserMessage('How are you?'));

// Print the response chunk-by-chunk in real-time
foreach ($handler->events() as $chunk) {
    echo $chunk->content;
}

// I'm fine, thank you! How can I assist you today?

Streaming chunks

When you process the streamed response of the agent you can expect to receive three types of chunk objects:

• TextChunk: represents a piece of text

• ReasoningChunk: contains chunks of the reasoning summary of the model (only available for reasoning models)

• ToolCallChunk: represents the LLM asking for a tool execution

• ToolResultChunk: contains the results of tool execution

These objects are a layer of abstraction between the underlying messages flow inside the agent to perform a task and the data needed on the client side to stay informed on what's going on behind the scenes.

The stream composition depends by your agent implementation. If the agent has no tools attached there is no chance to receive a ToolCallChunk or ToolResultChunk instance, so you can iterate the output stream expecting only text and reasoning chunks.

Streaming & Tools

Neuron support Tools & Function calls in combination with the streaming response. You are free to provide your Agents with Tools and they will be automatically handled in the middle of the stream, to continue toward the final response.

When the agent receive a tool call request from the LLM, it will stream two types of chunk: ToolCallChunk, ToolResultChunk.

These classes contain the instance of the tool behind called by the LLM so you can expose informative output to the client about what the agent is doind to answer the user prompt.

Here is an example of how you can deal with this scenario:

use App\Neuron\MyAgent;
use NeuronAI\Chat\Messages\UserMessage;
use NeuronAI\Tools\Tool;

$handler = MyAgent::make()
    ->addTool(
        Tool::make(
            'get_server_configuration',
            'retrieve the server network configuration'
        )->addProperty(...)->setCallable(...)
    )
    ->stream(
        new UserMessage("What's the IP address of the server?")
    );

// Iterate chunks
foreach ($handler->events() as $chunk) {
    if ($chunk instanceof ToolCallChunk) {
        // Output the ongoing tool call
        echo "\n- Calling tool: ".$chunk->tool->getName();
        echo "\n- Input: ".json_encode($chunk->tool->getInputs());
        continue;
    }

    if ($chunk instanceof ToolResultChunk) {
        echo "\n- Tool ".$chunk->tool->getName()." completed";
        echo "\n- Result: ".$chunk->tool->getResult();
        continue;
    }

    // Handle TextChunk and ReasoningChunk
    echo $chunk->content;
}

// Let me retrieve the server configuration.
// - Calling tool: get_server_configuration
// - Tool get_server_configuration completed
// The IP address of the server is: 192.168.0.10

Get The Final Result

When the model finishes streaming output you can retrieve the final AssistantMessage instance with the getMessage() method on the workflow handler:

$handler = MyAgent::make()->stream(...);

// Iterate chunks
foreach ($handler->events() as $chunk) {
    // ...
}

$message = $handler->getMessage(); // Get the final message instance
echo $message->getContent();

Monitoring & Debugging

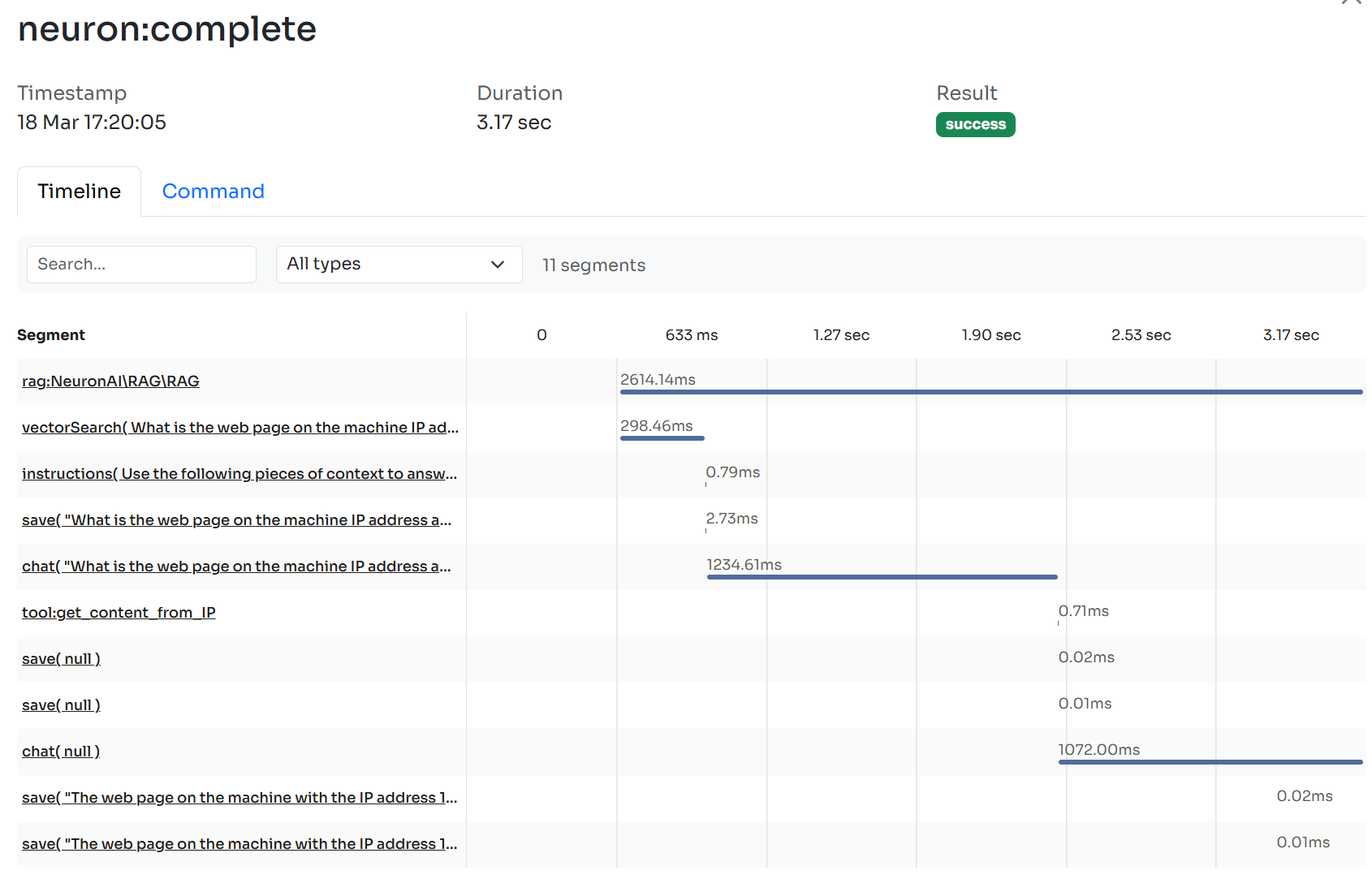

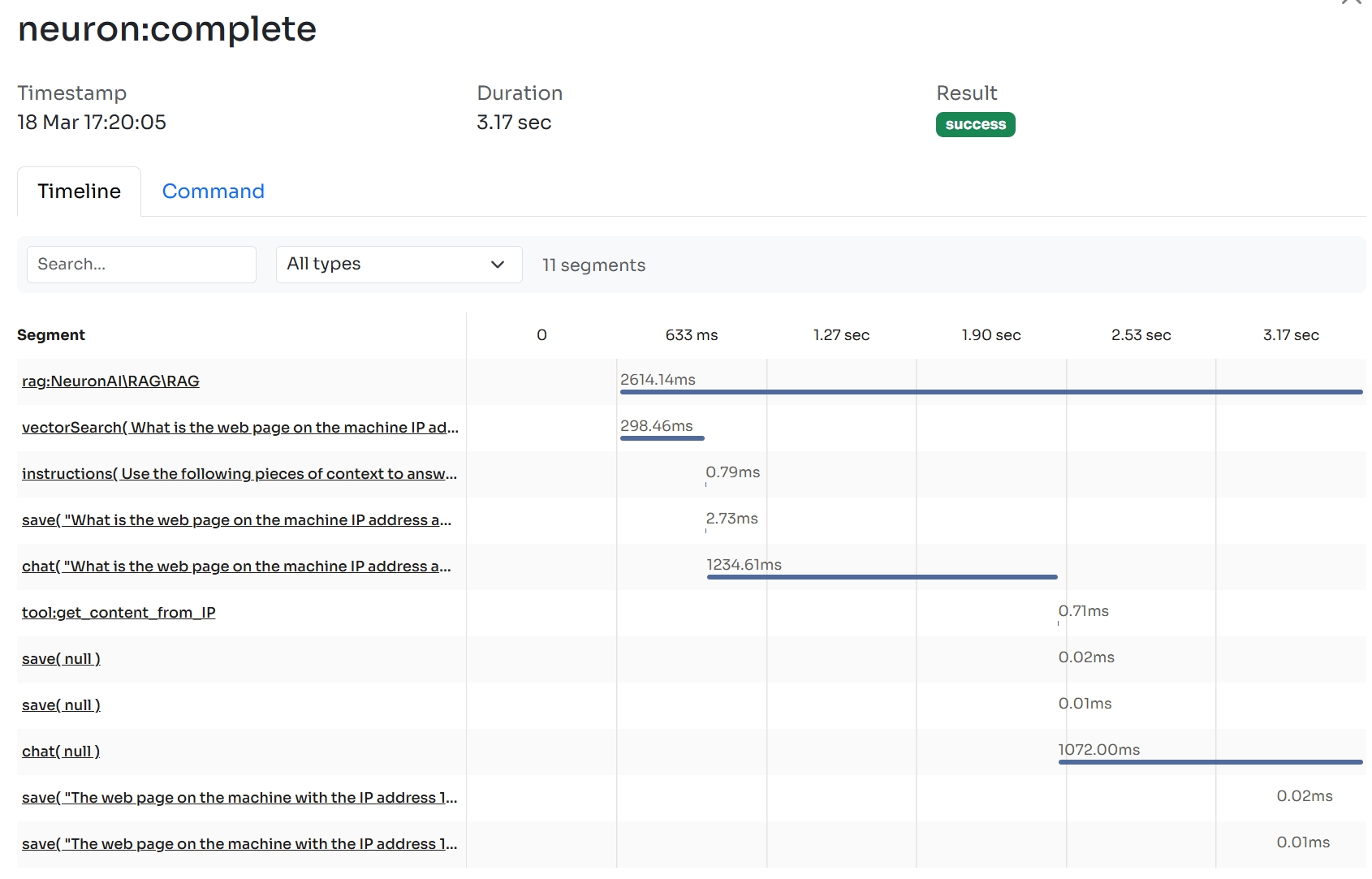

To watch inside this workflow you should connect your Agent to the Inspector monitoring dashboard in order to see the tool call execution flow in real-time.

After you sign up at the link above, make sure to set the INSPECTOR_INGESTION_KEY variable in the application environment file to start monitoring:

.env

INSPECTOR_INGESTION_KEY=nwse877auxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Learn more about Agent observability in the dedicated documentation.

Stream Adapters

Neuron's Stream Adapter system provides a flexible, protocol-agnostic way to help you eaily integrate Neuron powered agents with your frontend stack.

Stream adapters act as translators between Neuron's internal streaming events (text chunks, tool calls, reasoning steps) and specific frontend protocols like Vercel AI SDK or AG-UI.

You can also plug in adapters to send streamed data to an external transport layer like Pusher, if you want to stream contents to the UI from agent executed in the background.

This architecture allows you to seamlessly integrate Neuron agents with various frontend frameworks without modifying your core agent logic. Adapters handle protocol-specific concerns such as message lifecycle events, event formatting, and ID tracking, while maintaining consistent streaming behavior across all providers (Anthropic, OpenAI, Gemini, Ollama, etc.). The system is highly extensible, you can create custom adapters by extending SSEAdapter to implement streaming data transofrmations, or directly implement the StreamAdapterInterface for custom needs.

You simply need to provide an adapter instance to the events() method of the agent handler used to stream the LLM response.

Vercel AI SDK Adapter

Adapter for Vercel AI SDK Data Stream Protocol: https://ai-sdk.dev/docs/ai-sdk-ui/stream-protocol

use NeuronAI\Chat\Stream\Adapters\VercelAIAdapter;

// Instruct the agent
$handler = MyAgent::make()
    ->stream(
        new UserMessage('What is the square root of 144?')
    );

// Provide the adapter instance to the events() method
$stream = $handler->events(new VercelAIAdapter());

// Process the response
foreach ($stream as $line) {
    echo $line;
}

AG-UI Adapter

Implements the streaming event-based protocol defined by AG-UI protocol for real-time agent-frontend interaction. Supports text messages, tool calls, reasoning, and lifecycle events.

For more information, visit: https://docs.ag-ui.com/concepts/events

use NeuronAI\Chat\Stream\Adapters\AGUIAdapter;

// Instruct the agent
$handler = MyAgent::make()
    ->stream(
        new UserMessage('What is the square root of 144?')
    );

// Provide the adapter instance to the events() method
$stream = $handler->events(new AGUIAdapter());

// Process the response
foreach ($stream as $line) {
    echo $line;
}

Custom Adapters

The events() method of the agent handler accept an instance of StreamAdapterInterface. So you are free to implement this interface with custom implementation, and pass it to the handler. Here is how the interface looks like:

interface StreamAdapterInterface
{
    /**
     * Transform a Neuron chunk into protocol-specific output.
     *
     * @param object $chunk Any Neuron chunk (TextChunk, ToolCallChunk, etc.)
     * @return iterable<string> One or more output lines/messages
     */
    public function transform(object $chunk): iterable;

    /**
     * Get HTTP headers for this protocol.
     *
     * @return array<string, string>
     */
    public function getHeaders(): array;

    /**
     * Protocol initialization sequence (optional).
     *
     * @return iterable<string>
     */
    public function start(): iterable;

    /**
     * Protocol termination sequence (optional).
     *
     * @return iterable<string>
     */
    public function end(): iterable;
}

You can always get inspiration by the built-in implementations.
