Tips & Tricks

Overcome bottlenecks, and learn about the Workflow features through real code examples

Too many nodes?

When you work with many nodes, loops, or branches, nodes are always registered in the workflow as a flat list. Having too many nodes can make it difficult to visually follow the execution flow and focus on a certain part of the workflow for changes or new development.

Instead of a flat 20-node array, break it into logical sections:

 class MyWorkflow extends Workflow
 {
     ...
    protected function nodes(): array
    {
        return [
            ...$this->classificationProcess(),
            ...$this->analysis(),
            ...$this->postProcessing(),
        ];
    }

    /**
     * Initial classification process
     */
    protected function classificationProcess(): array
    {
        return [
            // Nodes here...
        ];
    }
}

The spread operator (...) keeps the runtime behavior identical. It's still a flat array. But now the nodes() method reads like a table of contents, and each group is self-documenting.

Example Projects

AIForm - Conversational Data Collection

AIForm is a component for collecting structured data through multi-turn natural language conversations. It uses an AI agent to progressively gather information defined by a structured output class, validating each piece of data along the way.

The form maintains conversation history, tracks collected fields, missing fields, and validation errors across multiple turns.

Check out the GitHub repository

Deep Research Agent

This project is inspired by Open Deep Research, which uses LangGraph for implementation. Other implementations exist also for llamaindex, and others. Our version leverages Neuron to create a powerful, modular workflow for research and analysis.

Neuron Open Deep Research provides a structured approach to generating comprehensive research reports on any topic using large language models, with a focus on modularity, extensibility, and real-time results.

Architecture

DeepResearchAgent: Orchestrates the overall report generation process

• Planning: Creates the structure of the report

• GenerateSectionContent: Generates content for each section using search results

• Format: Compiles the final report

SearchWorkflow: Handles search operations as a nested workflow

• GenerateQueries: Creates search queries based on section topics

• SearchTheWeb: Executes parallel searches and processes results

Check out the GitHub repository

Travel Planner Agent

This project demonstrates how to create a tour planner using Neuron PHP framework for agentic applications.

Stack Used:

• Neuron Workflow for multi-agent orchestration.

• SerpAPI for finding hotels, flights and places to visit comprehensive research reports on any topic using large language models, with a focus on modularity, extensibility, and real-time results.

Architecture

TravelPlannerAgent: Orchestrates the overall itinerary generation process

Nodes

• Receptionist: Collect all the information from the user

• Delegator: Generates single reports for flights, hotels, and places to visit

  • Flights

  • Hotels

  • Places

• GenerateItinerary: Generates the final report

Check out the GitHub Repository

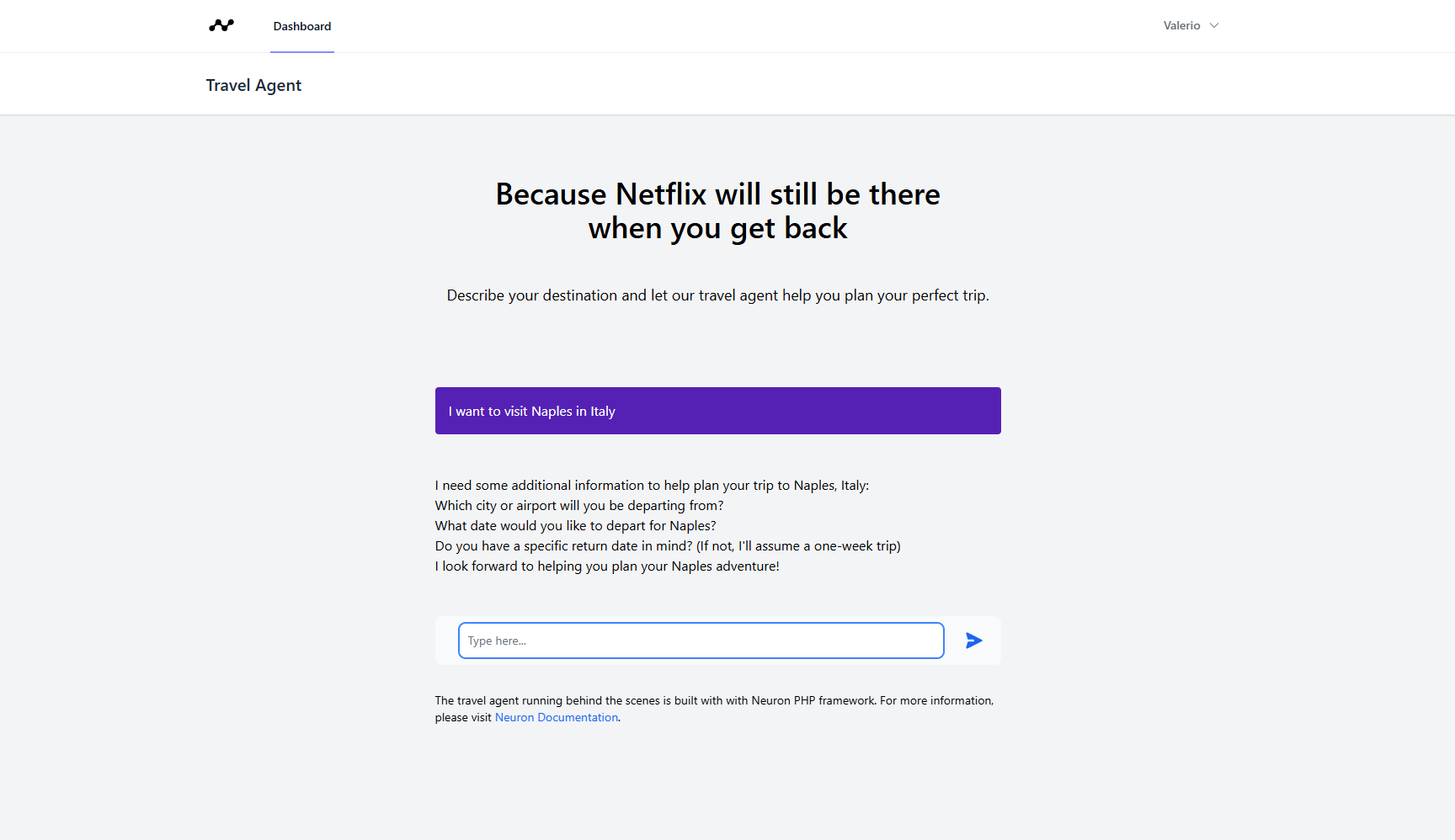

Laravel Travel Agent

This project demonstrates how to integrate multi-agent workflows in a Laravel application using Neuron PHP AI framework.

Stack Used:

• Laravel and Livewire for the application.

• Neuron Workflow for multi-agent orchestration.

• SerpAPI for finding hotels, flights and places to visit comprehensive research reports on any topic using large language models, with a focus on modularity, extensibility, and real-time results.

How to use this project

Download the project on your machine and open your terminal in the project directory. First, install the composer dependencies:

composer install

npm run build

php artisan migrate

Create a .env file in your project root (see .env.example for a template), and provides the API keys based on the service you want to connect with.

# At least one required
ANTHROPIC_API_KEY=
GEMINI_API_KEY=
OPENAI_API_KEY=

#Required
SERPAPI_KEY=

# Optional
INSPECTOR_INGESTION_KEY=
INSPECTOR_TRANSPORT=sync

Open the project in your browser, register an account, and start planning your trip.
